Description
| Model No. | TT-AIO142M05-320-11 |
| Rated Power | 4kw |
| Single item weighing rang(in one time) | 5g to 200g |
| Weighing accuracy | ±0.3g |
| Min. scale value | 0.1g |
| Max. speed | 20 to 120bpm |
| Packaging film width | 110mm to 320mm(recommend maximum width :300mm) |
| Bag size | length: 50mm to 190mm width:50mm to 150mm(recommend maximum width: 140mm) |
| Bag qualified rate | 96% |
| Compressed air | ≥6kg/cm2 , 80L/min |
| Packaging flim material | PP,PE,PVC,PS,EVA,PET,PVDC+PVC,OPP+composite CPP |
| Working environment | temperature: 0ºC to 40ºC humidity: 30% to 95% |
| Machine packed weight | 500kg |

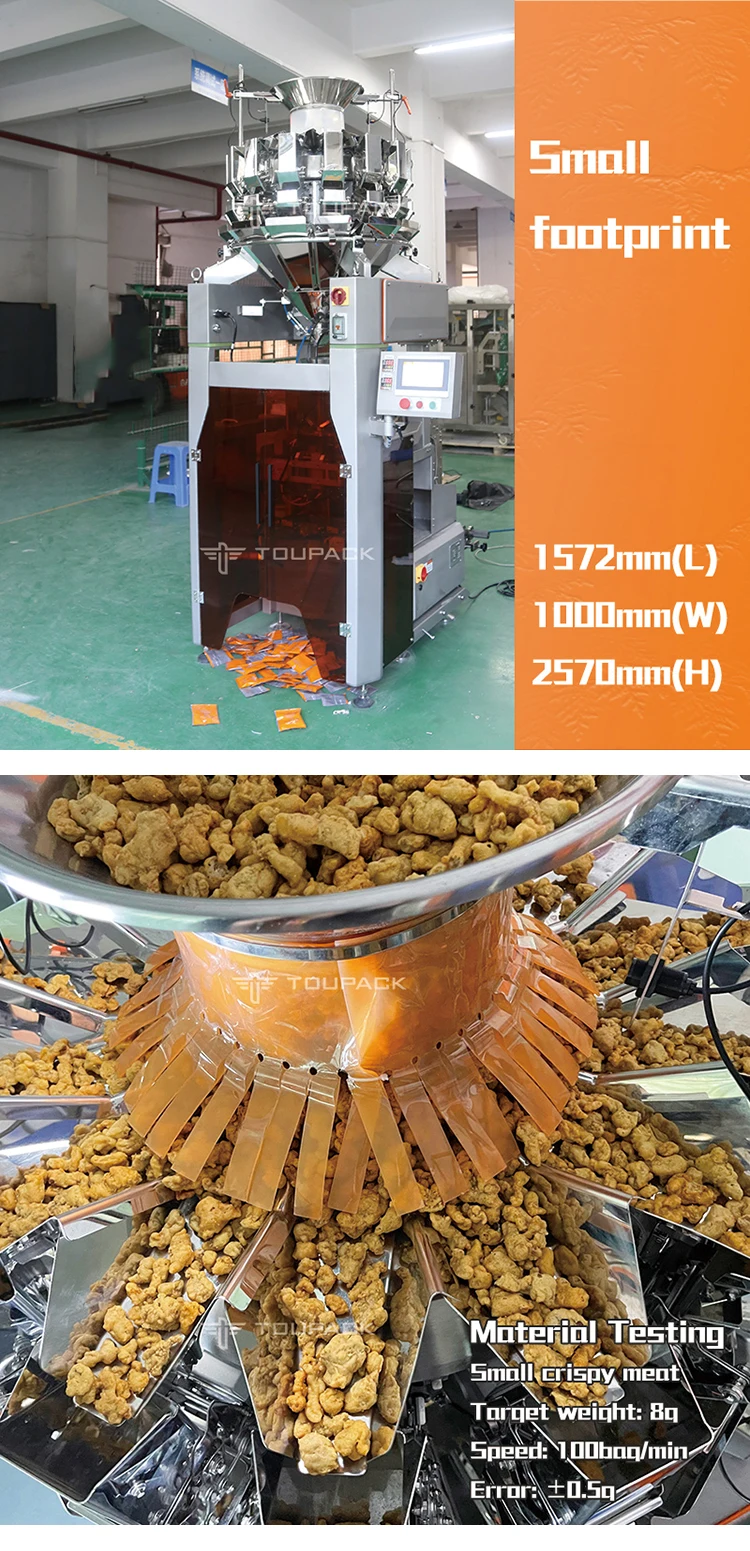

| Machine size | 1572mm(L) x 1000mm(W) x 2570mm(H) |
| Model | 520 VFFS | 620 VFFS | 720 VFFS |
| Packing Speed | 10-60 BPM | 10-50 BPM | 10-45 BPM |
| Bag Size | 50-350(L)*50-250(W)mm | 20-400(L)*100-300(W)mm | 20-450(L)*140-350(W)mm |
| Bag Type | pillow bag, gusset bag, hole punching bag,quad seal bag | ||
| Film Width | 120-520mm | 620mm | 720mm |
| Film Thickness | 0.04-0.09mm | 0.04-0.09mm | 0.06-0.12mm |
| Film Material | BOPP/CPP、BOPP/VMCPP、BOPP/PE、PET/VMPET/PE、PET/PE | ||
| Pulling Belt Type | synchronous belt film pulling | synchronous servo motor belt film pulling> | synchronous servo motor belt film pulling |
| Air Consumption | 0.7Mpa 0.4m³/min | 0.8Mpa 0.5m³/min | 0.7Mpa 0.65m³/min |
| Power Supply | single phase 220V 50Hz/60Hz, 3.4KW | single phase 220V 50HZ/60HZ, 4.0KW | single phase 220V 50/60HZ, 4.5KW |
| Machine Dimension | 1,560(L)*1,160(W)*1,530mm(H) | 1,250(L)*1,600(W)*1,700(H)mm | 1,360(L)*1,630(W)*1,900(H)mm |
| Machine Weight | 480kg | 800kg | 900kg |
· With over 15 years' experience, Toptic Tech (Zhongshan) Co.,Ltd.
enjoys a
reputation for high-quality products and excellent customer service.
· We are the manufacturer of high quality Detection Equipment at a competitive
price, specialized in Check Weigher, Weight Sorting Machine, Metal Detector,
X-ray inspection system as well as Multihead Weigher, Linear Weigher, Conveying
Equipment, Packaging equipment, etc.
·Our factory covers an area of 17,300 sqm. QC team consists of 10 people.
· Pre-sales Services:
a.Collecting customer’s product information and requirements.
b.Providing initial solution and offer for customer's opinions within 6 Hours against information collection.
c.Sufficient applications and videos help customers to get a
better understanding of our equipment.
· In-sales Services:
a.Sending the drawings of ordered machines for customer's approval before production.
b.Following up each production process to guarantee on-time delivery.
c.Sharing the machine running test and inspection video for customer's confirmation
before delivery.
d.Collaborating with shipping agents for freight arrangement and keeping customers updated on ETD & ETA info.
· After-sales Service:
Operation manuals / Videos for machine installation, setting,
adjusting and/or maintenance are available for end users.
· Online After-sales Service:
An in-time response within 4 hours in case of machine
error,supportive advice shall be offered within 24 hours via whatsapp, wechat, and
other social network apps. Our engineer team can communicate in English for high
efficient solution.
· Onsite After-sales Service:
Engineer(s) are available for on-spot technical support at end users' factories if necessary.
