TT-CM01 Check Weigher and Metal Detector Combination

TT-CM01 Check Weigher and Metal Detector Combination


check weigher and metal detector combination

High accuracy and high sensitivity food industrial check weigher metal detector combination

Product Description

PowerAC220V ± 10% 50Hz(60Hz)
Rate power0.5kw
Weight Range(in one time)≤5000g
Accuracy Range±0.5g to ±2g
Min. Scale Value0.1g
Conveying Speed20 to 50m/min
Max. Speed80 pcs per minute
The subject weighed refer dimension≤300mm(L) x 290mm(W)
The dimension of the conveying belt446mm(L) x 300mm(W)
Available machine size2613mm(L) x 930mm(W) x 1441mm(H)
Rejecting methodPusher(other options: air blow, swing bar, other special method)
Control SystemHigh speed A/D sampling controller
Preset product Number99pcs
Operating Directorface to the machine, left-side in, right side out/right side in, left side out
Air Compressor requirement0.6 to 1 Mpa
Metal Detection AccuracyFe≥φ0.5mm to φ 0.8mm; SUS304≥φ1.5mm
The working environmentTemperature: 0℃ to 40℃,
Humidity: 30% to 95%
Machine Frame material304 stainless steel
Max. Detection width≤300mm
Max. Detection height≤150mm

1. Key function. This machine, with high sensitivity, strong anti-interference ability, stable performance, automatic fault detection, can effectively eliminate unqualified materials.

2. CustomizationThe machine can be customized according to the exact situation of the production line. It improves production efficiency. It also can be customized according to the detected products size, weight, characteristics to ensure the best detection effects meet your need.

Our checkweigher system can integrate with your existing production line without difficulty, easy to improve your working efficiency.

3. Reporting Data. Real time reporting data, which can be exported to Excel file, is available. Storing 1 year production data in USB disk is both available.

4. Easy to use. Touch screen operating system is easy to be used with user password protection.
LCD touch screen offers both Chinese and English interface and easy to be used. Interface with  multi-languages
is available.

Connectivity. It can be connected to peripheral devices and work with them simultaneously .So the whole food production line operation can be achievable.

6.  IP 65 for all components.


Used to check whether there is foreign metal object and whether the weight is qualified in single product.
Widely applied in electronics products, pharmaceuticals, food, beverage, daily used products, light industrial products, agricultural products weight and metal checking.

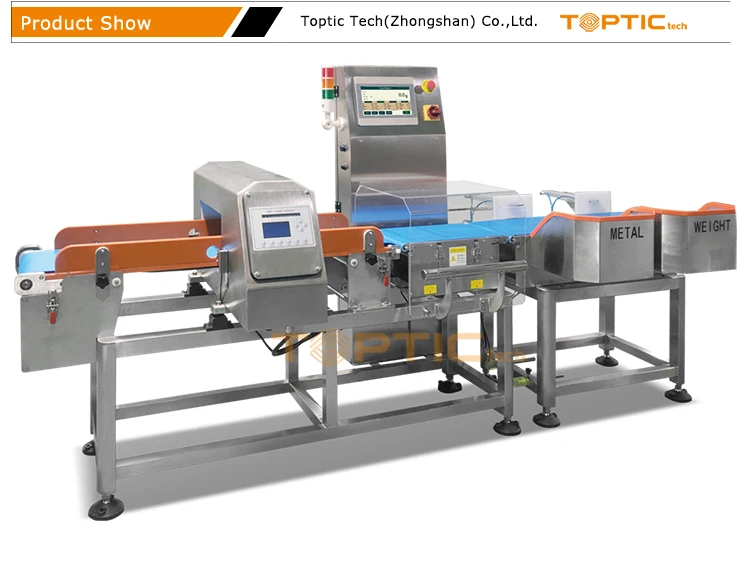

check weigher and metal detector combination


Company Information


Toptic Tech (Zhongshan) Co.,Ltd. is one of subsidiary company of Guangdong Toupack Intelligent Equipment Co., Ltd. was established in 2009, located in the National Torch High-tech Development Zone, Zhongshan City, Guangdong Province. It is a high-tech enterprise. The company focuses on the R&D and production of intelligent weighing, packaging, testing, and conveying systems. The products are exported to more than 80 countries and regions at home and abroad. It has an overseas after-sales service center in California, USA; it has a wholly-owned subsidiary-Anhui Toupack Intelligent Equipment Co., Ltd. in East China, and has offices in Shanghai and Chengdu, Sichuan.

delivery 1
• Why should you buy from us not from other suppliers?
We are a high-tech enterprise which is specialized in developing and manufacturing Checkweigher and weight sorting machine more than 18 years. And we have a complete processing line, such as custom R&D and program development, steel cutting, steel bending and polishing, assembly, inspection to better meet delivery dates and products quality, and strong customization requirements.

• What's the MOQ and leading time?
1.No MOQ for the sample.
2.Leading time: 1-2 pcs takes 7-10 days; 3-5 pcs takes 10-15 days;>5 pcs takes more than 20 days

• Can I have a visit to your factory before the order?
Sure,welcome to visit our factory. You can visit our factory on site or have a video with our staff.

• Complete Technical Support
All of products is at least 12 month warranty and any enquiry will be responded within 24 hours.

We solemnly promise: equipment and material contact parts are 304 stainless steel material or food grade plastic, in line with the health requirements.
