TT-CW120/150 Check weigher

TT-CW120/150 Check weigher



Check weigher
Check weigher

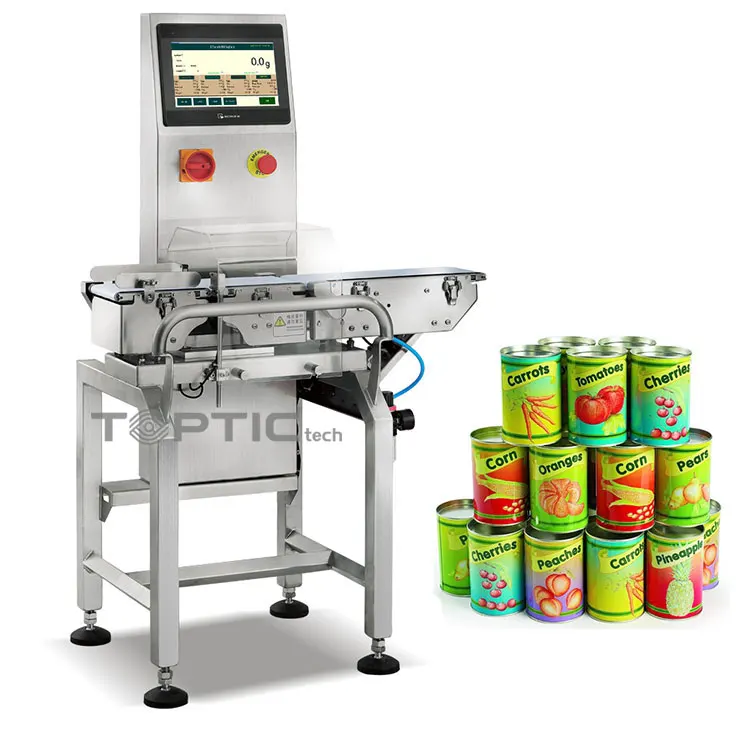

TT-CW120/150 Online Industrial Check Weigher

Check weigher Check weigher

Power SupplyAC220V±10% 50Hz (60Hz)
Max. weighing500g
Weighing accuracy±0.05g to ±0.1g
Maximum speed180BPM
Power Rating0.1kw
Weighing resolution0.01g
Conveying speed20 to 60 meters per minute
Available material weighed size≤120mm(L) x 100mm(W)
Conveying belt size250mm(L) x 120mm(W)
Control systemHigh speed A/D sampling controller

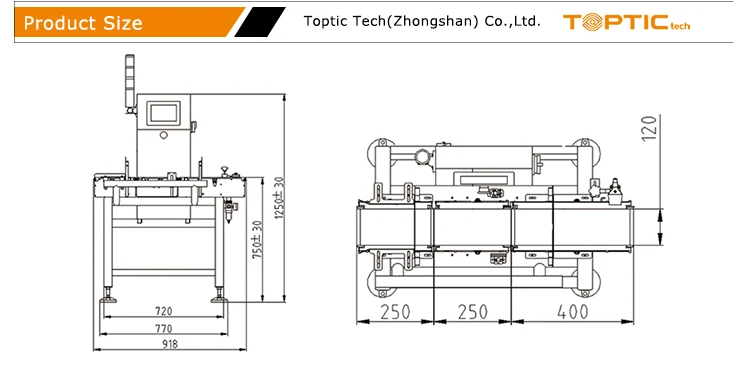

Machine dimension

913mm(L) x 570mm(W) x 1413mm(H)

Operating directorFacing to the machine, left-side in, right side out/ right-side in, left-side out
Rejecting methodPusher(other options: air blow, turning plate, other special method)
Air Compressor requirement0.6 to 1 Mpa
Air pressure InterfaceDiameter 8mm
The working environment

Temperature: 0℃ to 40℃

Humidity: 30% to 95%

Frame materialStainless steel 304
Pre-set products no.99

Check weigher Check weigher Check weigher

This product is applicable for testing whether the weight of a single product is qualified, and is widely used in electronics, pharmaceuticals, food, beverages, health care products, daily chemicals, light industry, agricultural and sideline products and other industries. Such as cosmetics for daily chemical products(including beauty cosmetics, cleaning cosmetics, skin care products, hair cosmetics, etc.), detergents(including soap, washing powder, detergent,etc.), oral products(including toothpaste, mouthwash, etc.), others chemical produscts(including shoes polish, floor wax, deodorant, insect repellent, etc.)

Check weigher Check weigher

Main Feature

  1. Report function: built-in report statistics, the report can be generated in EXCEL
    format, can automaticlly generate a variety of real time data report, the U disk
    can store statistical data for more than 1 year, and you can grasp the production
    status at any time.
  2. Interface function: reserved standard interface, convenient for data management,
    can communicate with PC and other smart devices.
  3. Realize centralized control: can realize centralized control of multiple sorters by
    one computer/human-machine interface.
  4. Parameter recovery function: Provide factory parameter setting recovery function.
