TT-CW400 Check weigher

TT-CW400 Check weigher


Check weigher

TT-CW400 Online Industrial Check Weigher

Check weigher Check weigher Check weigher
Power SupplyAC220V±10% 50Hz (60Hz)
Max. weighing15KG
Weighing accuracy±2g to ±10g
Maximum speed60BPM
Power Rating0.4kw
Weighing resolution1g
Conveying speed20 to 80 meters per minute
Available material weighed size≤450mm(L) x 390mm(W)
Conveying belt size620mm(L) x 400mm(W)
Control systemHigh speed A/D sampling controller

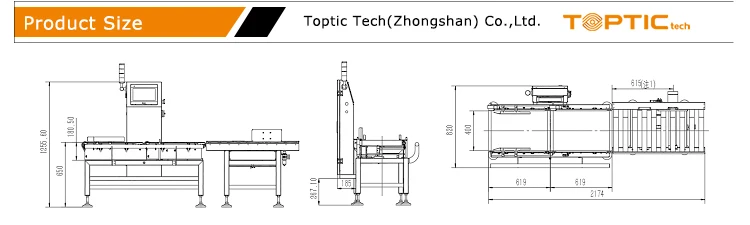

Machine dimension

2174mm(L) x820mm(W) x 1255mm(H)

Operating directorFacing to the machine, left-side in, right side out/ right-side in, left-side out
Rejecting methodPusher (other options: swing bar, other special method)
Air Compressor requirement0.6 to 1 Mpa
Air pressure InterfaceDiameter 8mm
The working environment

Temperature: 0℃ to 40℃

Humidity: 30% to 95%

Frame materialStainless steel 304
Pre-set products no.99

Check weigher Check weigher Check weigher

This product is applicable for testing whether the weight of a single product is qualified, and is widely used in electronics, pharmaceuticals, food, beverages, health care products, daily chemicals, light industry, agricultural and sideline products and other industries. Such as cosmetics for daily chemical products(including beauty cosmetics, cleaning cosmetics, skin care products, hair cosmetics, etc.), detergents(including soap, washing powder, detergent,etc.), oral products(including toothpaste, mouthwash, etc.), others chemical produscts(including shoes polish, floor wax, deodorant, insect repellent, etc.)

Check weigher Check weigher

Checkweigher for high-care food environments, is especially designed to withstand harsh,
high-pressure, high-temperature cleaning regimes.

1. Max. weight is 15000g ,maximum 80 bags/min.
2.  Applicable scope: It is used to detect whether single product weight is compliant with the set target.
3.  Scale frame structure ensures precise and stable measurement during dynamic working period.
4.  The LCD operation system offers both Chinese and English interfaces for easy learning.
5.  The strong data statistic function can be used to record the detection data of each procedure.
6. The demountable conveying belt is adopted for convenient maintenance.
7.  In the five standard weight sections, preset modes for 10 groups of product data can be stored.
8.  Solid and hygienic stainless steel construction.
9.  Protection class IP 65 for all components.
10. Compact design for easy Integration.
11.  Cleaning mode (optional) for highest hygiene and efficiency.

· With over 15 years' experience, Toptic Tech (Zhongshan) Co.,Ltd.
enjoys a  reputation for high-quality products and excellent customer service.
· We are the manufacturer of high quality Detection Equipment at a competitive
price, specialized in Check Weigher, Weight Sorting Machine, Metal Detector,
X-ray inspection system as well as Multihead Weigher, Linear Weigher, Conveying
 Equipment, Packaging equipment, etc.

·Our factory covers an area of 17,300 sqm. QC team consists of 10 people.

· Pre-sales Services:
a.Collecting customer’s product information and requirements.
b.Providing initial solution and offer for customer's opinions within 6 Hours against information collection.
c.Sufficient applications and videos help customers to get a
better understanding of our equipment.

· In-sales Services:
a.Sending the drawings of ordered machines for customer's approval before production.
b.Following up each production process to guarantee on-time delivery.
c.Sharing the machine running test and inspection video for customer's confirmation
before delivery.
d.Collaborating with shipping agents for freight arrangement and keeping customers updated on ETD & ETA info.

· After-sales Service:
Operation manuals / Videos for machine installation, setting,
adjusting and/or maintenance are available for end users.

· Online After-sales Service:
An in-time response within 4 hours in case of machine
error,supportive advice shall be offered within 24 hours via whatsapp, wechat, and
other social network apps. Our engineer team can communicate in English for high
efficient solution.

· Onsite After-sales Service:
Engineer(s) are available for on-spot technical support at end users' factories if necessary.
