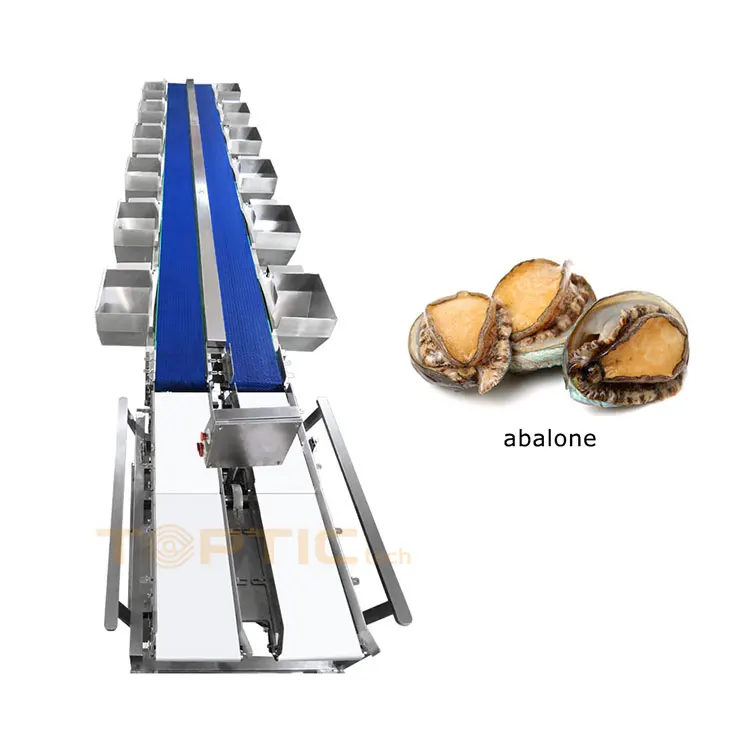

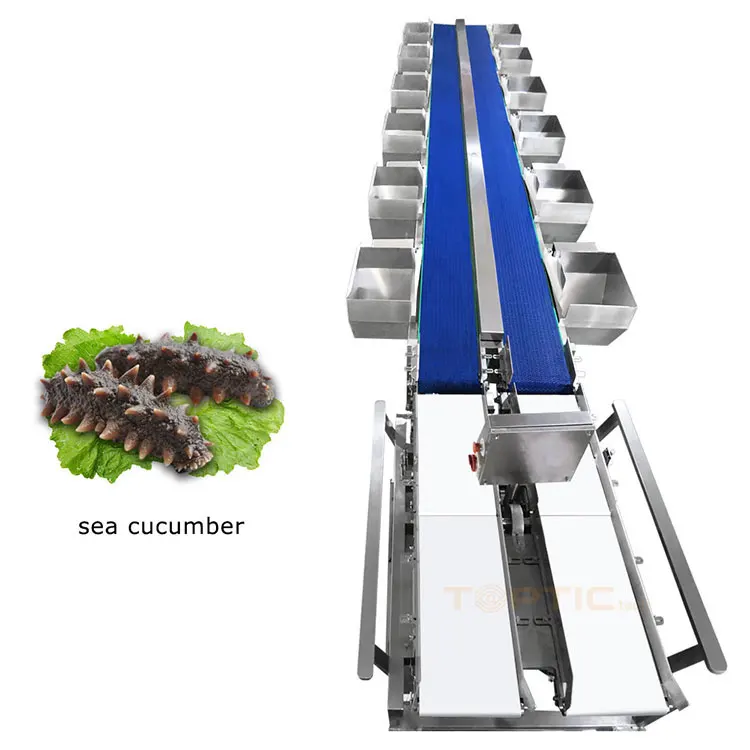

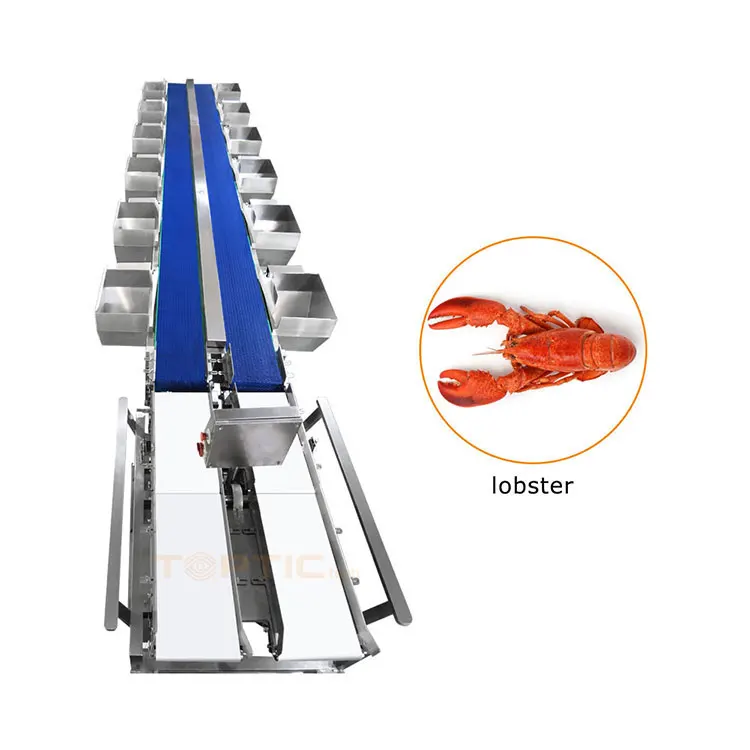

TT-WGM-02 Straight Dual Lanes Multi-Grade Weight Machine

TT-WGM-02 Straight Dual Lanes Multi-Grade Weight Machine


double channel weight sorting machine

Seafood Crayfish Fish Oysters Box Type Weight Sorting Machine

weight sorting machine weight sorting machine weight sorting machine weight sorting machine
Max.Sorting Weight(one time)500g
Operation ModeTouch Screen
Sensitivity±1g to ±3g
Picking Accuracy±3mm to ±4mm
Conveying Speed40 to 140(Both side work)BPM
Available Sorted Products Dimension≤200mm(length) x 130mm(width)
Checking Width≤130mm
Infeed Hoppers Length350mm
Infeed Hoppers Width200mm
Control SystemHigh Speed A/D Sampling Module
Preset Product Number100
Power AC220V±10% 50Hz/60Hz
The Working EnvironmentTemperature:0ºC~40ºC(with on-board air conditioner;Humidity:30%~95%(equipped with dehumidifier)
RejectionSwing arm
Body MaterialStainless steel 304

weight sorting machine

Product Highlights:

1. EASY.
Large LCD touch screen display. Chinese and English interface, Language customized is available.

High-precision load cell with high sorting accuracy and fast sorting speed.

The graph shows the statistical distribution of the sorting results and grasps the sorting dynamics in real time.

100 kinds of product sorting parameters can be preset, and different products can be quickly switched.

High-speed and high-precision digital filtering algorithm. Automatic learning is available.

Dynamic zero tracking is available when the equipment is continuously running. The weight value can be corrected automatically.

Variable frequency motor drive improve the stability of equipment operation.

8. DATA.
Preset data transmission interface which can set or export product sorting parameters via USB.

The photoelectric check weighing trigger method is adopted to effectively improve the accuracy of the equipment.

10. Sturdy Structure.

This machine has good performance and is hygienic for its solid Stainless steel 304 structure.

11. Connection.

Interface can achieve standard RS-485 and RS-232 dual communication port output.

12. Optional Function: as Multihead weigher.

The materials can be quantitative weighed after being sorted.

The machine can be customized according to exact situation of the production line.
It improve production efficiency. It also can be customized according to the sorted products size, weight and characteristics to ensure best sorting effects meet your need.

Hundreds of products cases and videos are available for you to understand our machine better and find the most suitable solutions to you.

weight sorting machine weight sorting machine

Your production process can be streamlined by our state-of-the-art dual lane weight grader.
This weight sorting machine is a game-changer for sorting fruits, vegetables, seafood, poultry
and frozen products such like lobsters, tilapia, golden pomfret, turkey, chicken and duck.

weight sorting machine

Toptic Tech (Zhongshan) Co.,Ltd.  is one of subsidiary company of Guangdong Toupack Intelligent Equipment Co., Ltd. was established in 2009, located in the National Torch High-tech Development Zone, Zhongshan City, Guangdong Province. It is a high-tech enterprise. The company focuses on the R&D and production of intelligent weighing, packaging, testing, and conveying systems. The products are exported to more than 80 countries and regions at home and abroad. It has an overseas after-sales service center in California, USA; it has a wholly-owned subsidiary-Anhui Toupack Intelligent Equipment Co., Ltd. in East China, and has offices in Shanghai and Chengdu, Sichuan.
