TT-DPM Doypack Packaging Machine

TT-DPM Doypack Packaging Machine


Doypack packing machine
Doypack Sealing Packaging Machine Doypack Doypack Doypack Doypack Doypack

Doypack Doypack
Bag Size150-380(L)*100-200(W)mm150-380(L)*80-200(W)mm
Bag Typeflat bags, aluminum foil bags, composite flat bagflat bags, aluminum foil bags,composite flat bags, zipper bags
Packaging Speed20-55 BPM20-40 BPM
Powder Supply3 phase 380V AC±10% 50Hz3 phase 380V AC±10% 50Hz
Use Power2.0kW/unit2.0kW/unit
Air Consumption5-8kg f/cm³, Air consumption:0.4m³/min5-8kg f/cm³, Air consumption:0.4m³/min
Operating NoiseWithin 80db (within 1m)Within 80db(within 1m)
Bag Opening MethodVacuum bag openingVacuum bag opening
Output FunctionChute conveyingChute conveying
Alarm State1. No bag or material,refuse to seal1. No bag or material,refuse to seal
2. Equipment overload alarm2. Equipment overload alarm
3. Low air pressure alarm3. Low air pressure alarm

doypack doypack doypack

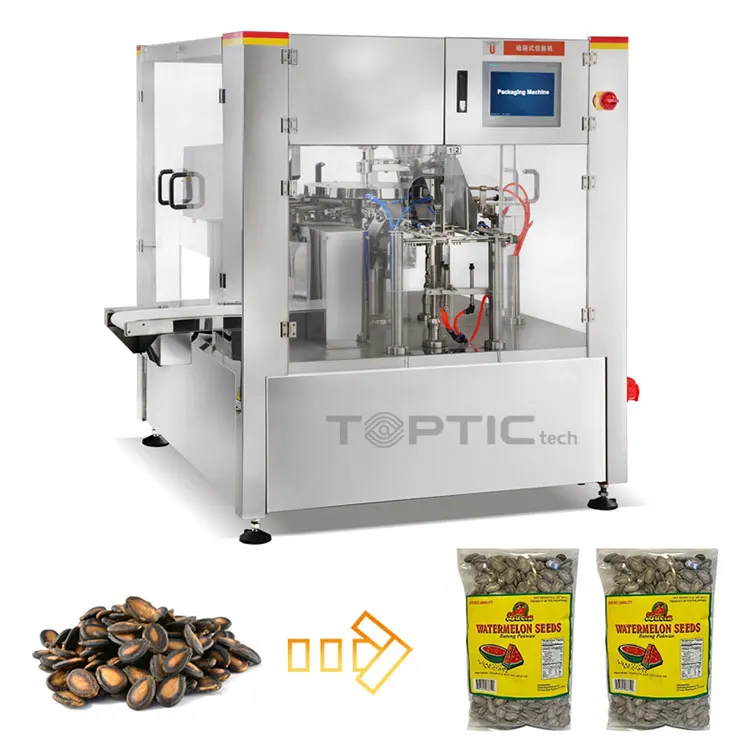

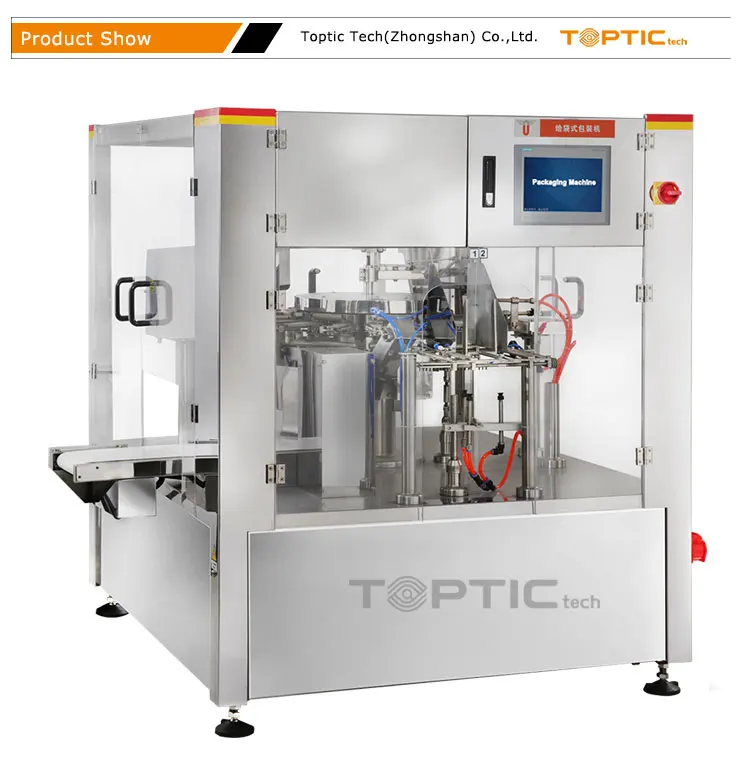

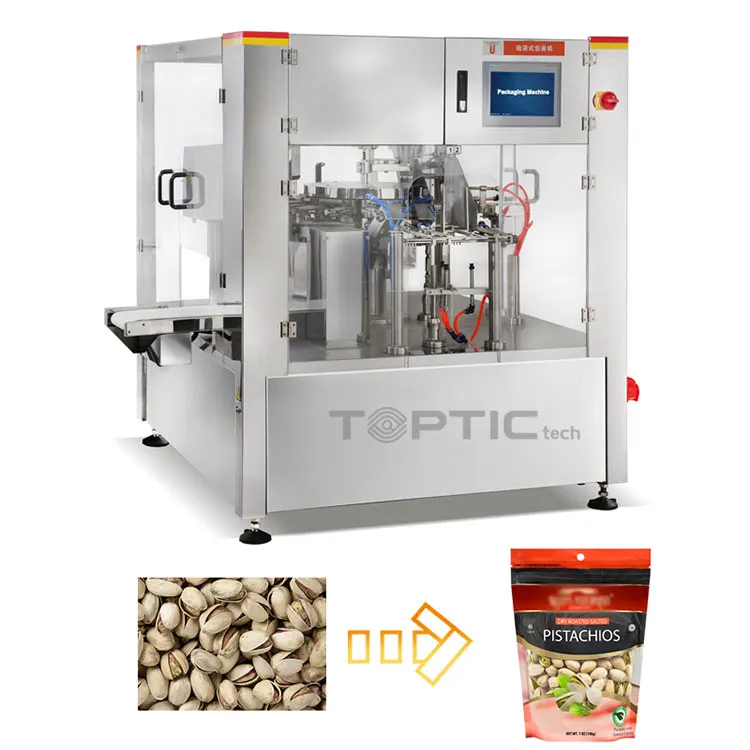

Rotary Doypack Pouch Fill & Sealing Machine is suitable for pre-made flat pouches, stand-up pouches, zipper pouches, gusset pouches and pouches with corner spouts.
It can be used for filling and sealing varieties of applications such as Wheat flour,
Sugar, Rice, Detergent, Shampoo and much more. This machine is designed for
handling pre-made pouches such as flat and stand-up pouches. It functions with a
touch screen display. It can easily integrate with various fillers, such as Auger filler weighing machine, volumetric dose, Liquid dose, Paste dose and other special dose.


1. Improving production efficiency and cost efficiency.
2. Equipped with auto-monitoring device, the machine can check the air pressure,
temperature controller breakdown, opening status of the pouches to determine if the machine is in normal condition. It can also control the code printer,filling and hot-sealing device to avoid wasting of bags and products.

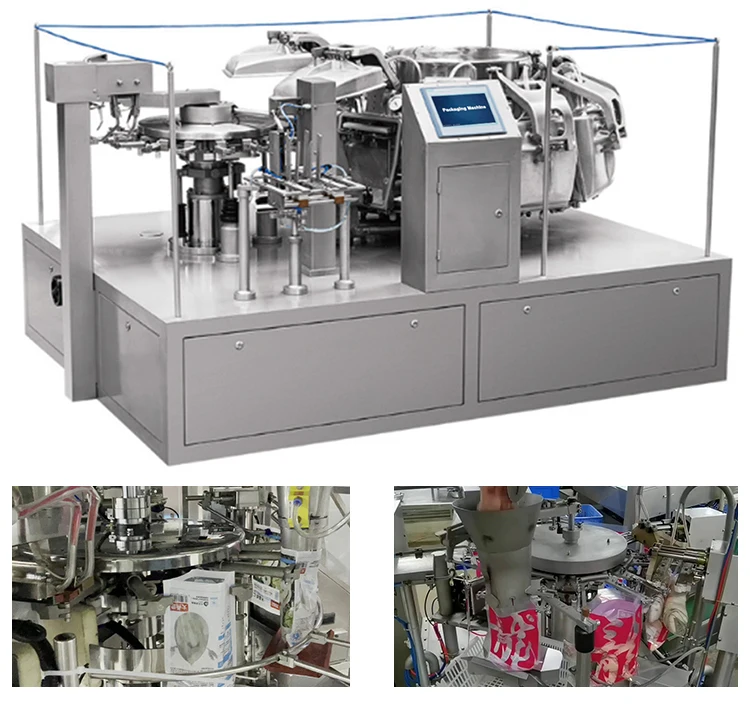

3. Fully-automated rotary vacuum pouches is able to meet a variety of packaging
needs and can be used with other equipment.
4. Fully-automated rotary vacuum pouches consists of two separate rotary parts
(filling system and vacuum system)with filling system in intermittent operation and vacuum system in continuous operation.
5. Quick change of the pouches. The width of the bagging can be adjusted automatically at one time.
6. The machine meets the hygienic standards of food processing machinery, with product contact parts in Stainless steel S304 or other material to conform with food hygiene and safety.

1. Durability
2. Versatility
3. Reliability
4. Low Maintenance
5. User Friendly
