TT-CWD01 Dual Channel High Precision Check Weigher

TT-CWD01 Dual Channel High Precision Check Weigher



TT-CWD01 Automatic Food & Beverage Machinery Check Weigher/ Checkweigher With Labelling For Packaging System

check weigher
check weigher check weigher

Easy Integration: adjustable height and modular design is available.

Sturdy and robust construction: Stainless Steel 304 frame ensure
precise and stable measurement during dynamic working period and

Easy to use: Touch screen operating system is easy to be used with user
password protection.
LCD touch screen offers both Chinese and English interface and easy to be used.
Interface with multi-languages is available.

Easy to clean: The belt made of food grade material, which is convenient to be
assembled and disassembled, is easy to be cleaned.

Variable Speed: Speed can be changed depend on application situation.

High Speed and Accuracy: High grade load cell with ultra-fast processor ensure
excellent weight checking accuracy and speed.

Zero Trace: Manual and Automatic Calibration increase weight data accuracy.

Reporting Data : Real time reporting data, which can be exported to Excel file,
is available. Storing 1 year production data in USB disk is both available.

Rejection: Customized kinds of rejection are available.

Self-learning: Without being calibrated, system will find the best set up for the
products with up to 2000 product settings.

Different Detection Modes: Default Mode, Static Mode and Power saving mode
are available.

Faulty report: The system can detect and report faulty part of the system makes
it easy to diagnose problems.

Output Ports: RS-485 and RS-232 are able to connect with printers and label

Connectivity: Standard ports can export data and connect to PC.

IP 65 for all components.

check weigher check weigher check weigher check weigher

Hundreds of products cases and videos are available for you to understand our machine better and find the most suitable
customized solutions to you.

check weigher

Weighing range( in one time)≤500g
Accuracy range±0.05g to ±0.2g
Min. Scale value0.01g
Max speed150 bags per minute
Conveying speed20 to 60m per minute
The weighed material available size≤120mm(L) x 100mm(W)

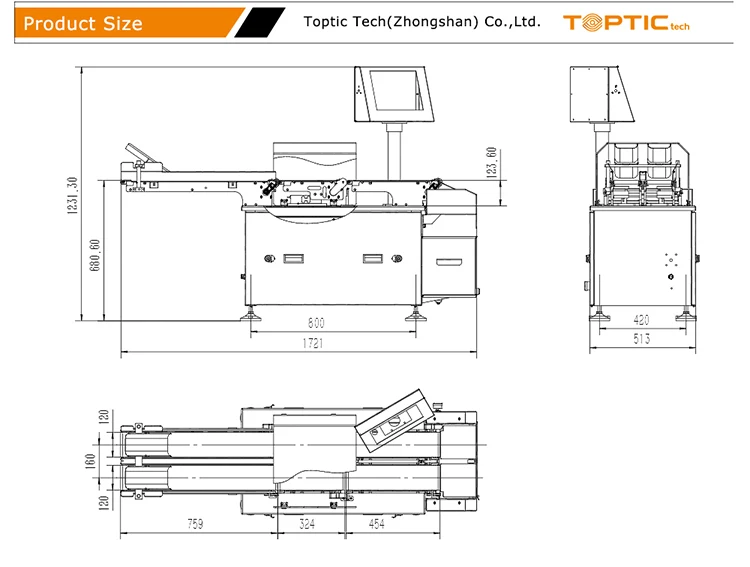

Machine dimension1721mm(L) x 513mm(W) x 1231mm(H)
The Conveying belt dimension324mm(L) x 120mm(W)
Rejection methodPusher(other option: air blow, turning plate, other special method)
Rate power0.2kW
PowerAC220V ± 10% 50Hz(60Hz)
Control systemHigh speed A/D sampling controller
Pre-set Product Number99 pcs
Operating directorFacing to the machine, left-side in, right-side out/right-side in, left-side out
Air compressor requirement0.6 to 1Mpa
Air pressure  interfaceΦ8 mm
The working environmentTemperature: 0ºC to 40 ºC  Humidity: 30% to 95%
The machine frame material304 Stainless steel

Check weigher check weigher

Check weigher machine can check packed products’ weight online whether their weights
are overweight or less-weight and reject the unqualified products. That ensures the weight
of products meet standard. It is used in automatic packing production lines.

Check weigher is widely used in the products such like cosmetics for daily chemical
products(including beauty cosmetics, cleaning cosmetics, skin care products, hair cosmetics,
etc.), detergents (including soap, washing powder, detergent, etc.), oral products (including
toothpaste, mouthwash, etc.), others chemical products (including shoes polish, floor wax,
deodorant, insect repellent, etc.) which are packed in bag, sachet, box, jar, cans, cartons,

check weigher

Hundreds of products cases and videos are available for you to understand our machine better and find the most suitable customized solutions to you.

check weigher check weigher

· With over 15 years' experience, Toptic Tech (Zhongshan) Co.,Ltd.
enjoys a  reputation for high-quality products and excellent customer service.
· We are the manufacturer of high quality Detection Equipment at a competitive
price, specialized in Check Weigher, Weight Sorting Machine, Metal Detector,
X-ray inspection system as well as Multihead Weigher, Linear Weigher, Conveying
Equipment, Packaging equipment, etc.

·Our factory covers an area of 17,300 sqm. QC team consists of 10 people.


· Pre-sales Services:
a.Collecting customer’s product information and requirements.
b.Providing initial solution and offer for customer's opinions within 6 Hours against information collection.
c.Sufficient applications and videos help customers to get a
better understanding of our equipment.

· In-sales Services:
a.Sending the drawings of ordered machines for customer's approval before production.
b.Following up each production process to guarantee on-time delivery.
c.Sharing the machine running test and inspection video for customer's confirmation
before delivery.
d.Collaborating with shipping agents for freight arrangement and keeping customers updated on ETD & ETA info.

· After-sales Service:
Operation manuals / Videos for machine installation, setting,
adjusting and/or maintenance are available for end users.

· Online After-sales Service:
An in-time response within 4 hours in case of machine
error,supportive advice shall be offered within 24 hours via whatsapp, wechat, and
other social network apps. Our engineer team can communicate in English for high
efficient solution.

· Onsite After-sales Service:
Engineer(s) are available for on-spot technical support at end users' factories if necessary.


check weigher

Kindly Reminder


Please kindly confirm the details with us as blow, so that the most suitable solutions will be

offered to you.

1. What is the products to be checked?

2. What are their maximum and minimum sizes and weights?

3.What is the weight checking speed and accuracy you need?


•Wide Range of Product

Working in weighing, packaging, conveying, multi-weight sorting and detecting machines.

•Product Patents
Almost all of our products have gained CE certificate,ISO9001 certificate,IP65 and IP67 Waterpoorf and Dustproof certificate.

• Professional R&D Team
The number of skilled engineers take up 63% of total employees.

•10+ Years of Customized System Integration
Providing all kinds of customized intelligent weighing and packaging solutions.

•Complete Technical Support
All of products is at least 12 month warranty and any enquiry will be responded within 24 hours.

• After-Sale Service
TOPTIC has setup its after-sale service in California, USA and Sichuan and Shanghai, China.
