TT-SC-100/200 Screw Elevator

TT-SC-100/200 Screw Elevator



Stainless Steel 304 Conveyor/Vibrating Hopper Feeder for salt milk power

screw elevator screw elevator screw elevator screw elevator screw elevator screw elevaotr scerew elevator

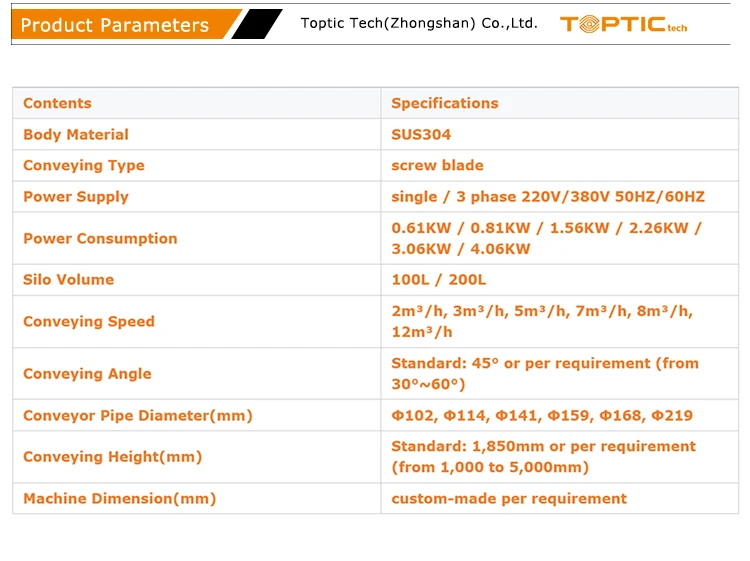

Body Material
Conveying Type
screw blade
Power Supply
single / 3 phase 220V/380V 50HZ/60HZ
Power Consumption
0.61KW / 0.81KW / 1.56KW / 2.26KW / 3.06KW / 4.06KW
Silo Volume
100L / 200L
Conveying Speed
2m³/h, 3m³/h, 5m³/h, 7m³/h, 8m³/h, 12m³/h
Conveying Angle
Standard: 45° or per requirement (from 30°~60°)
Conveyor Pipe Diameter(mm)
Φ102, Φ114, Φ141, Φ159, Φ168, Φ219
Conveying Height(mm)
Standard: 1,850mm or per requirement (from 1,000 to 5,000mm)
Machine Dimension(mm)
custom-made per requirement

screw elevator

check weigher X Ray Inspection

Toptic Tech (Zhongshan) Co.,Ltd. is one of subsidiary company of Guangdong Toupack Intelligent Equipment Co., Ltd. was established in 2009, located in the National Torch High-tech Development Zone, Zhongshan City, Guangdong Province. It is a high-tech enterprise. The company focuses on the R&D and production of intelligent weighing, packaging, testing, and conveying systems. The products are exported to more than 80 countries and regions at home and abroad. It has an overseas after-sales service center
in California, USA; it has a wholly-owned subsidiary-Anhui Toupack Intelligent Equipment Co., Ltd. in East China, and has offices in Shanghai and Chengdu, Sichuan.

·Our factory covers an area of 17,300 sqm. QC team consists of 10 people.

· Pre-sales Services:
a.Collecting customer’s product information and requirements.
b.Providing initial solution and offer for customer's opinions within 6 Hours against information collection.
c.Sufficient applications and videos help customers to get a
better understanding of our equipment.

· In-sales Services:
a.Sending the drawings of ordered machines for customer's approval before production.
b.Following up each production process to guarantee on-time delivery.
c.Sharing the machine running test and inspection video for customer's confirmation
before delivery.
d.Collaborating with shipping agents for freight arrangement and keeping customers updated on ETD & ETA info.

· After-sales Service:
Operation manuals / Videos for machine installation, setting,
adjusting and/or maintenance are available for end users.

· Online After-sales Service:
An in-time response within 4 hours in case of machine
error,supportive advice shall be offered within 24 hours via whatsapp, wechat, and
other social network apps. Our engineer team can communicate in English for high
efficient solution.

· Onsite After-sales Service:
Engineer(s) are available for on-spot technical support at end users' factories if necessary.

check weigher

1.What industry is Screw Conveyor suitable for?
Screw Conveyor suitable for food, medical, chemical or plastic industry.

2.What material is suitable for Screw Conveyor ?
Screw Conveyor suitable for the weighing of various granular and powdery materials,such as sugar,rice,chicken
essence,seeds,salt,milk power,coffee power,seasoning power and other materials.

3. What are your Payment terms?


4. How can we choose the machinery?
Contact with our sales, and provide products and requirement, we will give you solution with suitable machine and offer

5. When can we expect the goods to be delivered?
Regular machine can be delivered within 20-25 days. For customized machines, need evaluate depend on the project.

6. How about the after-sales service?
We have a perfect after-sales service system and promise to respond within 24 hours.
Online service is free on anytime. If cannot solve by online, on-site after service is also available.

Warranty: 1 year

7. How to cooperate with you?
All you need to do is contact our sales representatives who will patiently guide you through the whole process.

We solemnly promise: equipment and material contact parts are 304 stainless steel material or food grade plastic, in line with the health requirements.
