TT-MD3010/3015/3020 Horizontal Metal Detector

TT-MD3010/3015/3020 Horizontal Metal Detector


metal detector
metal detector

TT-MD3010/3015/3020 OEM/ODM Stainless Steel High Precision Industrial Automatic Metal Detector for Food Packaging

metal detector

1. Face to the machine, material left-side in,right-side out or right-side in, left-side out are both available in the food metal detection.

2. Automatic self-learning ability can quickly recognize the material which have been detected before and save time.

3. It can be customized in suitable size and rejection method according to the product to be detected and production line.

4. It can operate in the environment in which temperature is between 0ºC to 40ºC
and humidity is between 30 percent to 90 percent.

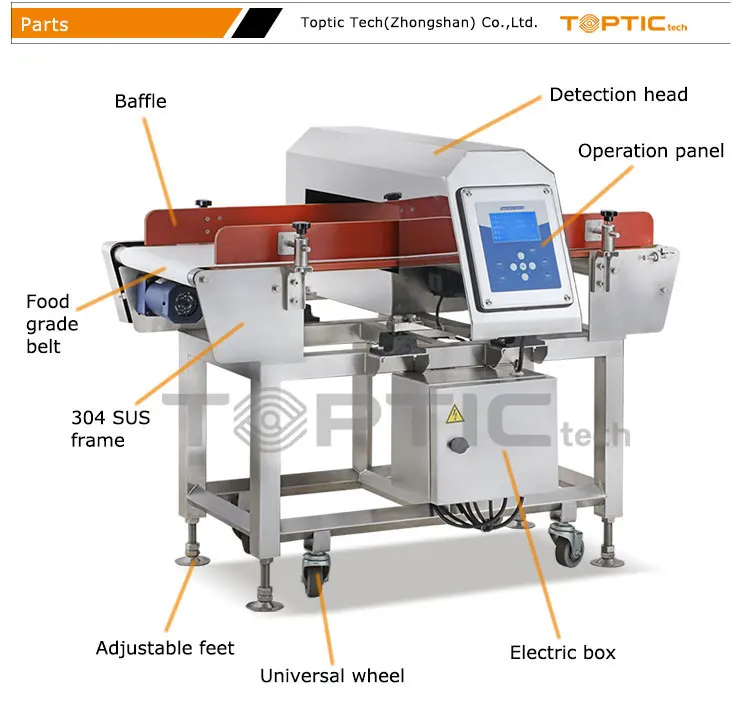

5. The whole frame is made of stainless steel 304, which meet HACCP level, and
with IP65.

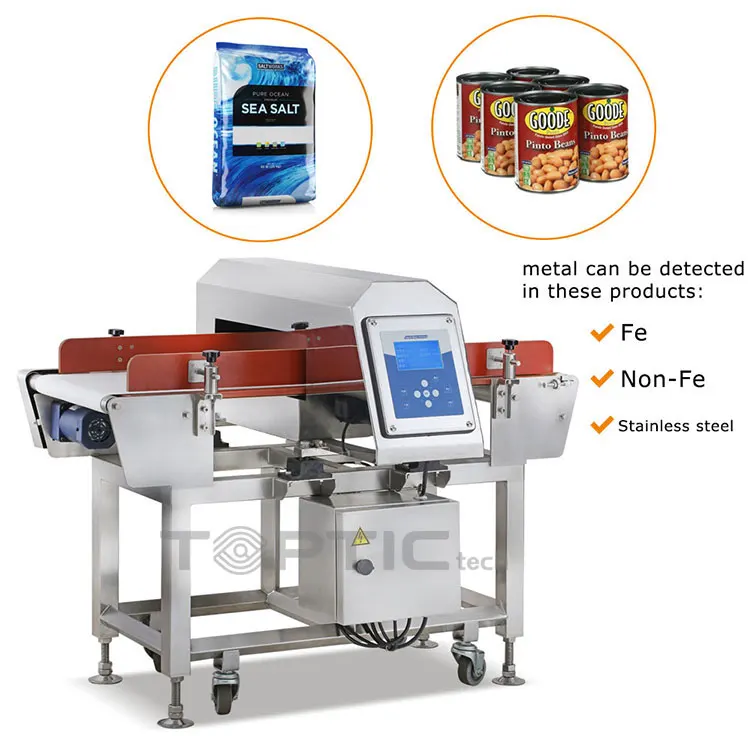

6. It is available for the metal detection of the products packed with paper, plastic
and glass such non-metallic material.

7. The metal detection sensitivity depend on the environment in which the products are detected.

Model No.TT-MD3010/3015/3020
Available product detected Height≤100 to 150mm
Available product detected Width≤300mm
Belt length1500mm
Detector sensitivityFe ≥dia.0.8mm to 1.0mm
SUS≥dia.1.0mm to 2.0mm
Reject DeviceFlash light alarm; pneumatic pusher/sliding(optional);automatic shutdown/rejection;metal found on the display(touch screen)

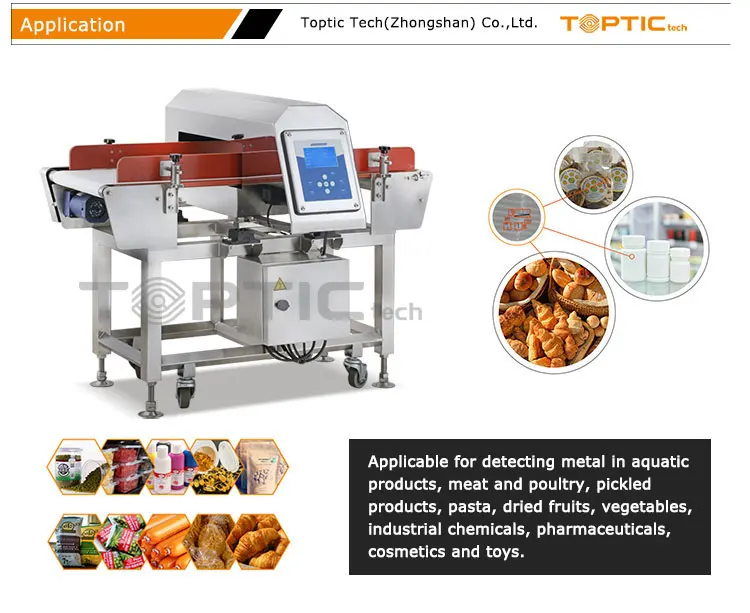

ApplicationNon-package ,plastic package ,paper bag or box (non-metallic) product
Work EnvironmentTemperature -10ºC-40ºC ,relative humility 30-90%

· With over 15 years' experience, Toptic Tech (Zhongshan) Co.,Ltd.
enjoys a  reputation for high-quality products and excellent customer service.
· We are the manufacturer of high quality Detection Equipment at a competitive
price, specialized in Check Weigher, Weight Sorting Machine, Metal Detector,
X-ray inspection system as well as Multihead Weigher, Linear Weigher, Conveying
 Equipment, Packaging equipment, etc.

·Our factory covers an area of 17,300 sqm. QC team consists of 10 people.

· Pre-sales Services:
a.Collecting customer’s product information and requirements.
b.Providing initial solution and offer for customer's opinions within 6 Hours against information collection.
c.Sufficient applications and videos help customers to get a
better understanding of our equipment.

· In-sales Services:
a.Sending the drawings of ordered machines for customer's approval before production.
b.Following up each production process to guarantee on-time delivery.
c.Sharing the machine running test and inspection video for customer's confirmation
before delivery.
d.Collaborating with shipping agents for freight arrangement and keeping customers updated on ETD & ETA info.

· After-sales Service:
Operation manuals / Videos for machine installation, setting,
adjusting and/or maintenance are available for end users.

· Online After-sales Service:
An in-time response within 4 hours in case of machine
error,supportive advice shall be offered within 24 hours via whatsapp, wechat, and
other social network apps. Our engineer team can communicate in English for high
efficient solution.

· Onsite After-sales Service:
Engineer(s) are available for on-spot technical support at end users' factories if necessary.
