Description

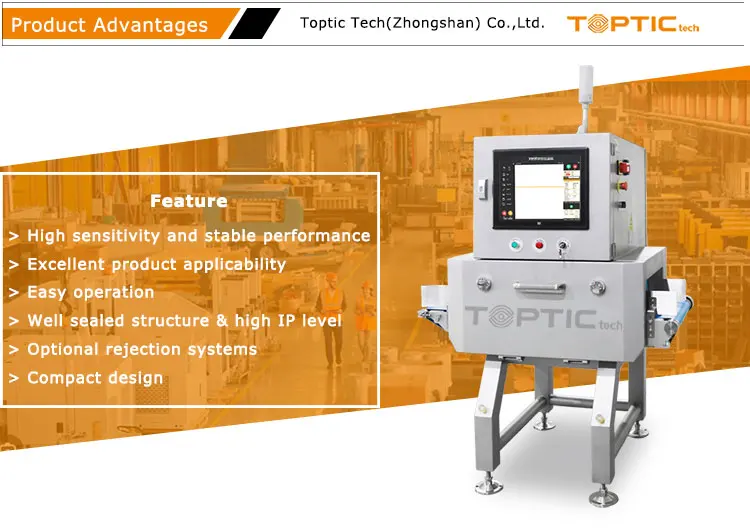

TT-XRI-5026K100 X-ray Inspection for Food
| Model | TT-XRI-5026K100 |
| X-Ray Generator | 40-120kV |
| Inspection Width | 500mm |
| Inspection Height | 260mm |
| Non-load Inspection Sensitivity | Stainless steel ball Φ0.4mm Stainless steel wire Φ0.2*2mm Ceramic ball Φ1.0mm Glass ball Φ1.0mm |
| Conveyor Speed | 10-70meters per minute |
| Display Screen | 17 inch German HMI industrial touch screen |
| Interface | LAN Port, USB Port |
| Working Environment |
Temperature: -10ºC-40ºC (Cooling method: air conditioned cooling)
|
| X-ray Leakage | <1μSv/hour |
| Protection Mode | Protective curtains (Detachable) |
| Alarming System | Alarm and machine stops (Rejecter optional) |
| Power Supply | AC220V ±10% 50/60Hz, 1.5kVA Max |
| Application | Packaged and products in bulk |
| Body Material | Stainless steel 304 |
1. Operator Friendly and easy to setup and manage.
2. Auto learn function.
3. Product images captured for analysis and traceability.
4. X-Ray Generator Max. 80kV, 150w.
5. Simple to Disassemble and clean.
6. Excellent Product Detection and analysis.
7. Sealed Structure to avoid dust.
8. Inspection Width options from 240mm to 600mm.
9. Inspection Height options from 110mm to 300mm.
10. Clear easy to read Touchscreen Display.
11. Conveyor IP65 construction.
12. Standard Sound and light alarm belt stop function.
13. Automatic Reject options.
14. Low energy consumption.
15. Predominately Stainless Steel SUS304 Construction.
16. Germany 17″ Colour Touchscreen with events and statistic.
17. Statistical Reporting.
· With over 15 years' experience, Toptic Tech (Zhongshan) Co.,Ltd.
enjoys a
reputation for high-quality products and excellent customer service.
· We are the manufacturer of high quality Detection Equipment at a competitive
price, specialized in Check Weigher, Weight Sorting Machine, Metal Detector,
X-ray inspection system as well as Multihead Weigher, Linear Weigher, Conveying
Equipment, Packaging equipment, etc.
·Our factory covers an area of 17,300 sqm. QC team consists of 10 people.
· Pre-sales Services:
a.Collecting customer’s product information and requirements.
b.Providing initial solution and offer for customer's opinions within 6 Hours against information collection.
c.Sufficient applications and videos help customers to get a
better understanding of our equipment.
· In-sales Services:
a.Sending the drawings of ordered machines for customer's approval before production.
b.Following up each production process to guarantee on-time delivery.
c.Sharing the machine running test and inspection video for customer's confirmation
before delivery.
d.Collaborating with shipping agents for freight arrangement and keeping customers updated on ETD & ETA info.
· After-sales Service:
Operation manuals / Videos for machine installation, setting,
adjusting and/or maintenance are available for end users.
· Online After-sales Service:
An in-time response within 4 hours in case of machine
error,supportive advice shall be offered within 24 hours via whatsapp, wechat, and
other social network apps. Our engineer team can communicate in English for high
efficient solution.
· Onsite After-sales Service:
Engineer(s) are available for on-spot technical support at end users' factories if necessary.
