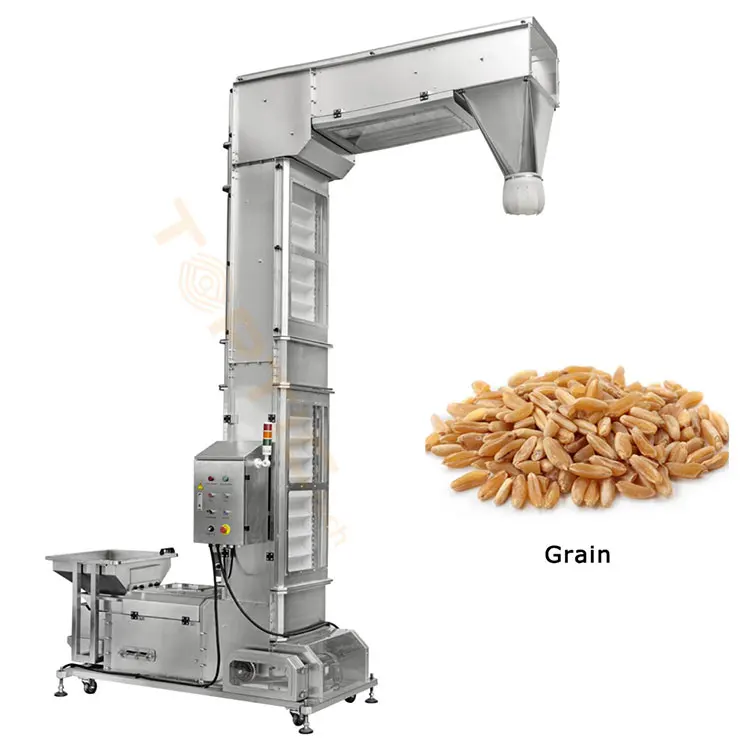

TT-ZTC-18 Stainless Steel Food Grade Conveyor Elevator for Lifting Material Product Vertically for Grain
Z Elevator Parts:
Hoppers: As a container for loading and transporting materials, it is made of
stainless steel, strong and durable without corrosion. Each machine has dozens
of these small hoppers. When the hopper reaches the outlet, the hopper is
tilted to allow the material to fall, and when the hopper reaches the inlet, it
returns to a horizontal state and proceeds to the next wave of transport.
Chain Belt: The hopper is attached to chain belt for transferring the hopper
from the inlet to the outlet. The entire chain belt is circular and end-to-end.
Metal Body: The Z Elevator is divided into three parts: the infeed length path,
the transport height part and the outfeed length part. The length of each section
can be customised to meet the requirements of different situations.
Electrical Control Box: Adopt well-know brand, each function is clear at a glance.
A variety of questions alarm function, the operation is more humane. With the
motor overload protection function.
Moter/Reducer: It is like the heart of the Z elevator, providing energy source
for the chain belt, using the famous factory motor and reducer, with high power
and stable performance.
The Z elevator has a number of small hoppers for charging.
They are attached to
the conveyor belt and when each hopper is filled, it follows the conveyor belt
from the inlet to the outlet. On arrival at the outlet, the hoppers are tilted to
allow the material to fall, then the empty hoppers continues to move and, on
arrival at the inlet, returns to a horizontal position and continues to be loaded,
and so on.
|Body Material||carbon steel / SUS304|
|Hopper Surface||dimple / plain|
|Power Supply||single / 3 phrase 220V/380V 50HZ/60HZ, 0.4KW/0.75KW/1.5KW/2.2KW|
|Machine Dimension(mm)||per customer's requirement|
|Vibrating Feeder||detached / independent vibrating feeder|
|Feeder Volume||70L / 100L / 150L / 200L|
|Discharge Funnel||single / double / multiple|
1. The hoppers are made of food grade PP material with good looking, free of
deformation as well as of low and high temperature resistance.
2. Fully enclosed structure leaves the machine no chance for leakage or pollution.
Low rate of material damage. Ideal for non-sticky product conveying.
3. Compact structure design for space saving the lifting height and machine size can be customized.
4. Adjustable conveying speed and easy maintenance, disassembly and cleaning.
Why Choose Z Bucket Elevator?Space-saving
Vertical structure, more space-saving than the usual bucket elevator Flexible and Efficient.
The Z bucket elevator has a large conveying capacity, a high lifting height and
reliable and stable operation. Discharge height and discharge width can be
customised according to the use scenario Closure Or Open The Z bucket elevator
can be designed as open or fully enclosed as required. Reduces powder contamination
of the workshop or prevents dust from falling into the material.
Z elevator do not cost much and last a long time. The minimalist structure is an important factor in the very low failure rate of Z elevator.
